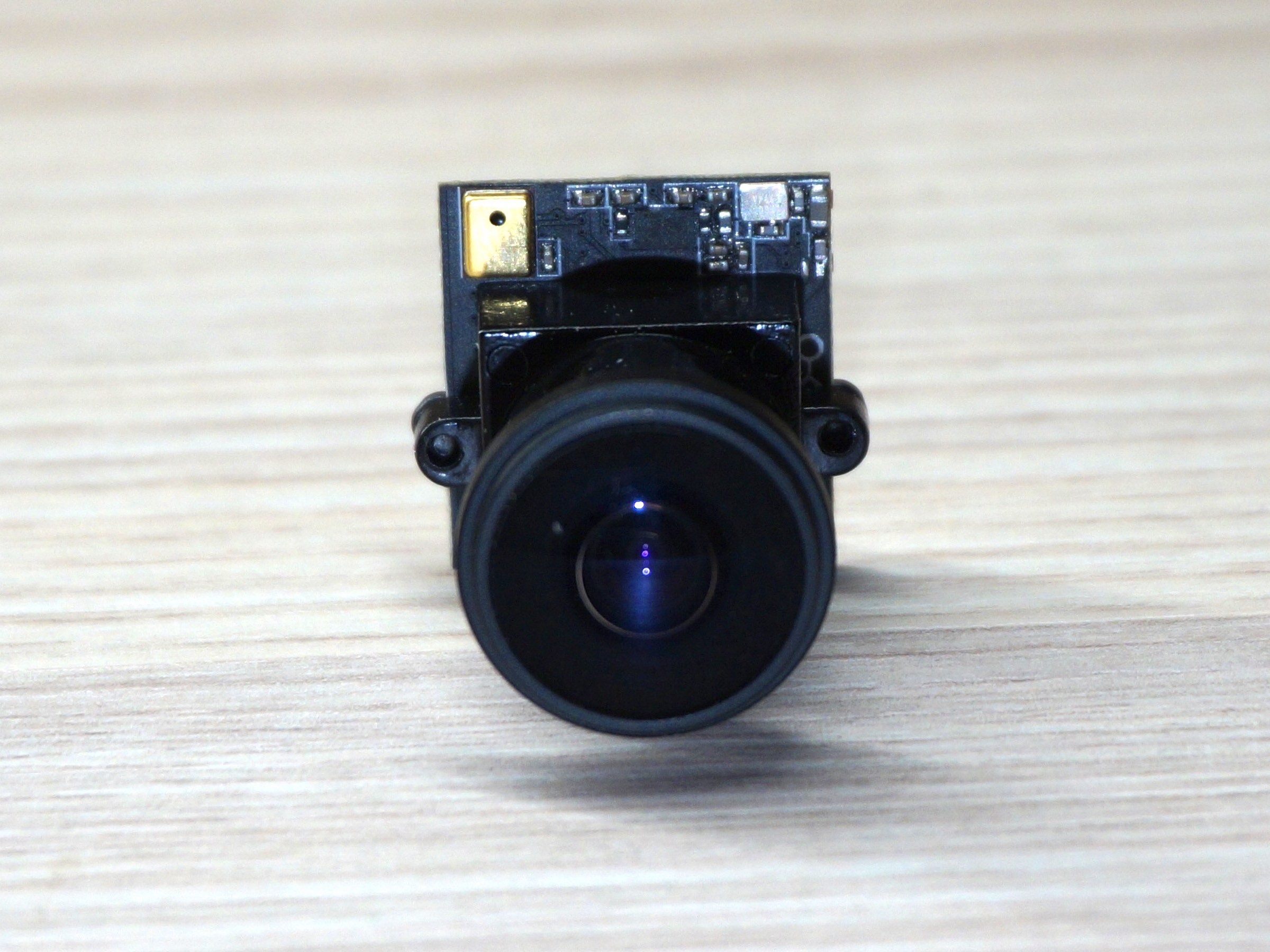

VoCore2 Camera

note: we might change lens to other shape(same parameters) if the original one stop production.


Parameters

Details
SIZE20mm x 20mm x 25mm (include lens)
H.264Support
MJPEGSupport
RESOLUTION1920x1080 (Full-HD)
FPS30/s at FHD
LENS2.8mm, 180 degree
MICROPHONESupport, on board
DRIVERUVC 2.0, UAC 1.0
POWER SUPPLYmicroUSB 5.0V
POWER CONSUMPTION140~170mA

Sources

Old Linux 2.6 driver patch will update at Nov.30

Linux > 3.10 is driver free.

Notify

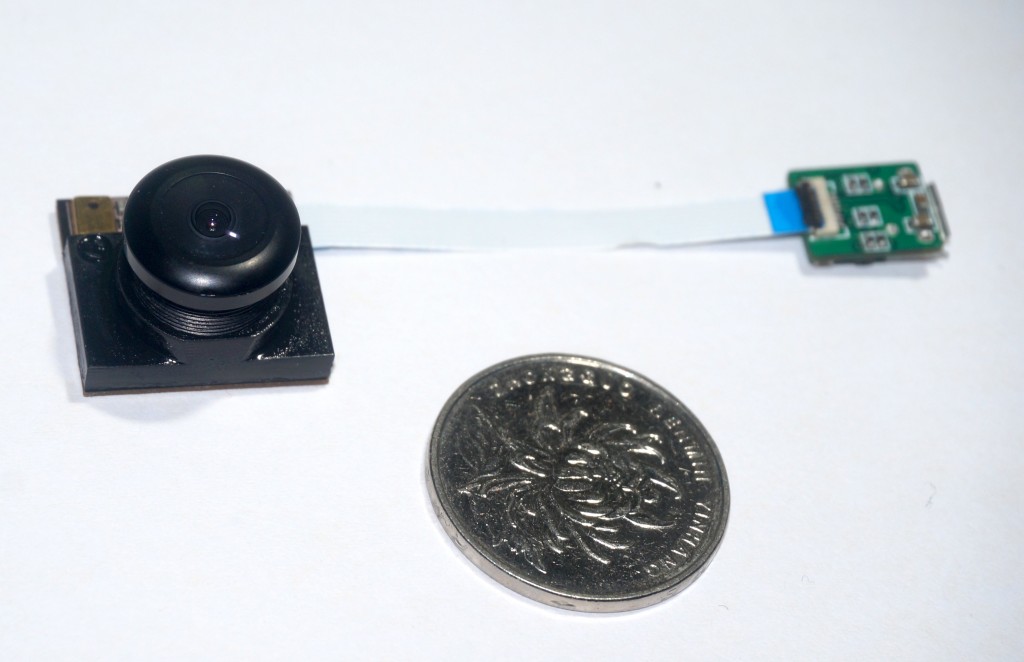

The connectors of VoCam264 and its power board are weak, from its datasheet, they only have 20 times life cycle.

When you use it, please be careful, better to avoid move between the two boards.
